BT Atlas BT10: V8 Atlas Bipod – Picatinny Mount

BT Atlas BT10: V8 Atlas Bipod – Picatinny Mount

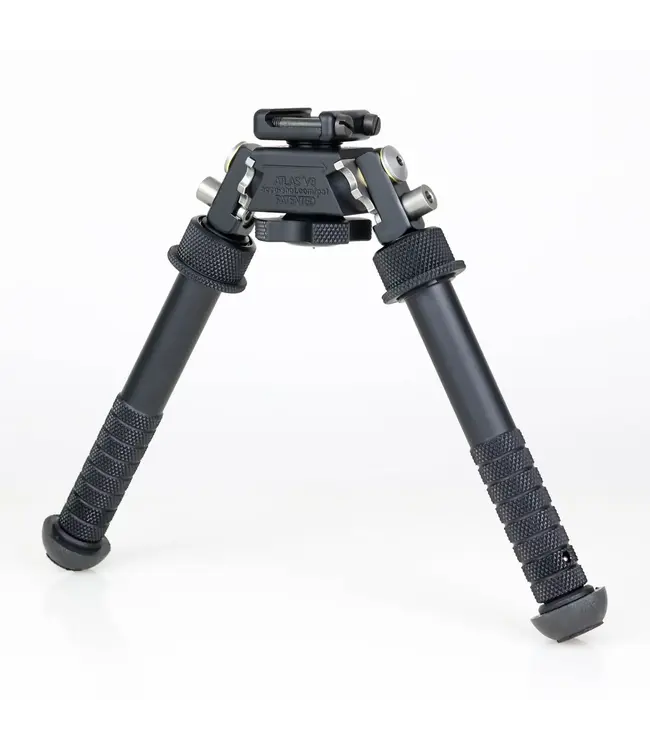

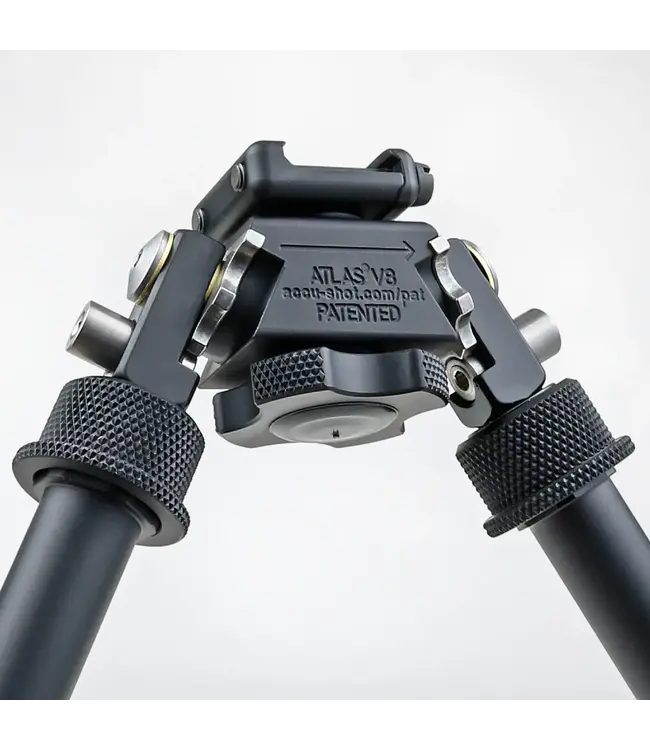

The BT10 V8 Atlas Bipod mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly.

It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only.

Selected for SOCOM MK14 MOD 2. NSN 1005-01-601-0007 (for complete system)

• Height Range: 4.8 – 9.1″ (6.3” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button 0.36″ diameter

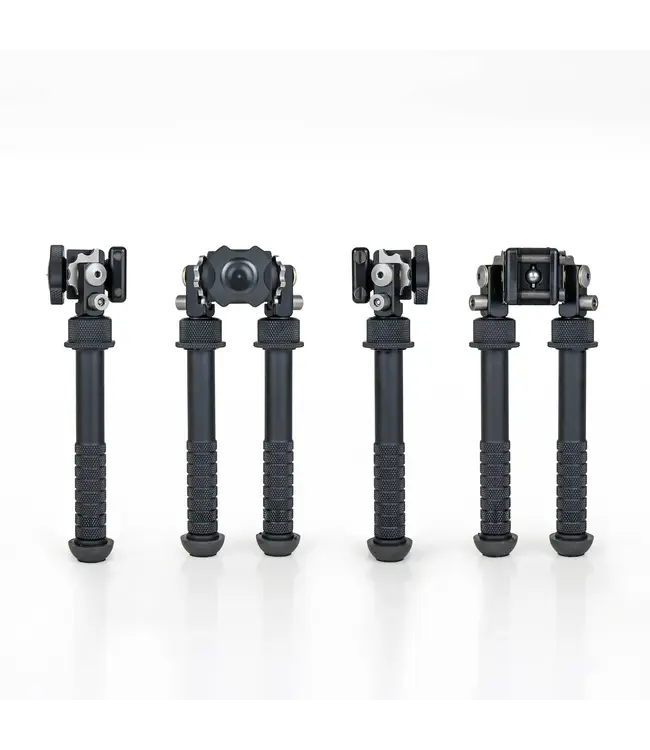

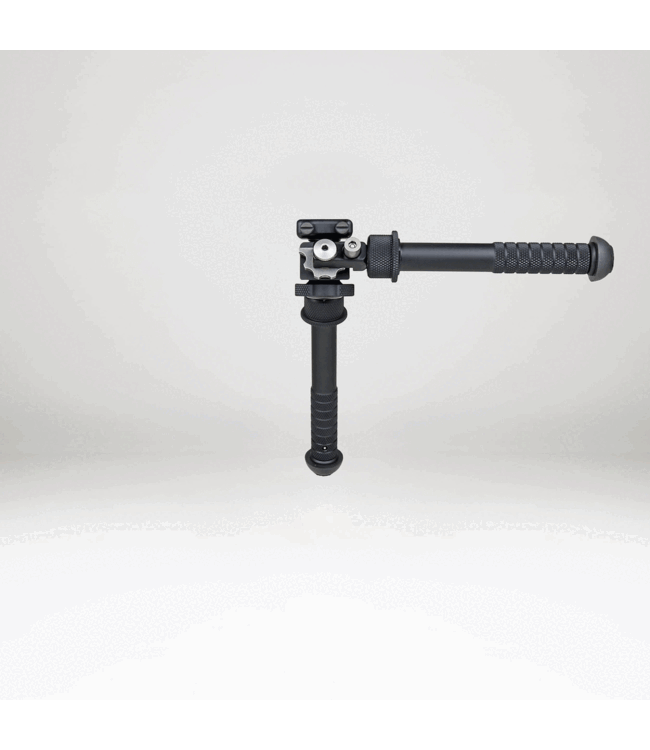

• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Weight: 11.0 ounces approx.
• Footprint: 8–11″

• Atlas V8 Series Bipod Video Tutorial
• UHMW components used for smooth tracking
• Preload on Pan and Cant can be tightened by means of the knurled knob
• Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.

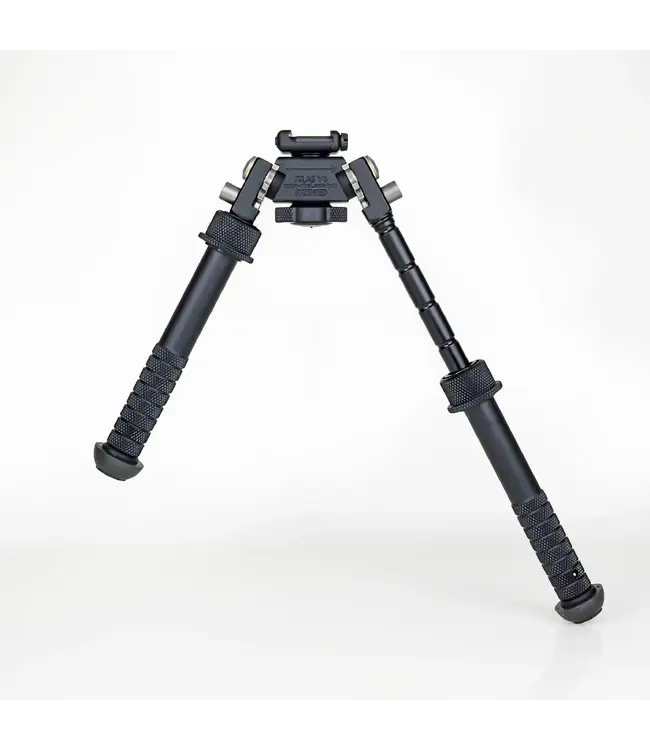

• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾” apart
• Standard soft, durable rubber feet that are suitable for many surfaces included
• Optional 3” Leg Extensions to increase height
• Optional interchangeable Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles
